CTextureBase Class Reference

Base texture class, which holds the state of the texture, as well as all conversion functions. More...

#include <TextureBase.h>

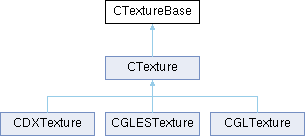

Inheritance diagram for CTextureBase:

Public Member Functions
	CTextureBase ()=default
	~CTextureBase ()=default
bool	HasAlpha () const
void	SetAlpha (bool hasAlpha)
void	SetMipmapping ()
	sets mipmapping. do not use in new code. will be replaced with proper scaling.
bool	IsMipmapped () const
	return true if we want to mipmap
void	SetScalingMethod (TEXTURE_SCALING scalingMethod)
	sets the scaling method. scanout systems might support more than NN/linear.
TEXTURE_SCALING	GetScalingMethod () const
	returns the scaling method.
int32_t	GetOrientation () const
void	SetOrientation (int orientation)
void	SetCacheMemory (bool bCacheMemory)
	retains a shadow copy of the texture on the CPU side.
bool	GetCacheMemory () const
	returns true if a shadow copy is kept on the CPU side.
uint8_t *	GetPixels () const
	returns a pointer to the staging texture.
uint32_t	GetPitch () const
	return the size of one row in bytes.
uint32_t	GetRows () const
	return the number of rows (number of blocks in the Y direction).
uint32_t	GetTextureWidth () const
	return the total width of the texture, which might be scaled to fit its displayed size.
uint32_t	GetTextureHeight () const
	return the total height of the texture, which might be scaled to fit its displayed size.
uint32_t	GetWidth () const
	return the total width of "active" area, which might be equal or lower than the texture width due to alignment.
uint32_t	GetHeight () const
	return the total height of "active" area, which might be equal or lower than the texture height due to alignment.
uint32_t	GetOriginalWidth () const
	return the original width of the image, before scaling/cropping
uint32_t	GetOriginalHeight () const
	return the original height of the image, before scaling/cropping
KD_TEX_SWIZ	GetSwizzle () const
	return the texture swizzle
void	Allocate (uint32_t width, uint32_t height, XB_FMT format)
void	ClampToEdge ()

Static Public Member Functions
static uint32_t	PadPow2 (uint32_t x)
	rounds to power of two. deprecated.
static bool	SwapBlueRed (uint8_t *pixels, uint32_t height, uint32_t pitch, uint32_t elements=4, uint32_t offset=0)
	swaps the blue/red channel. deprecated in this form.

Protected Member Functions
uint32_t	GetPitch (uint32_t width) const
uint32_t	GetRows (uint32_t height) const
uint32_t	GetBlockWidth () const
uint32_t	GetBlockHeight () const
uint32_t	GetBlockSize () const
	return the size of a compression block (tile) in bytes.
void	SetKDFormat (XB_FMT xbFMT)
bool	ConvertToLegacy (uint32_t width, uint32_t height, uint8_t *src)
	Textures might be in a single/dual channel format with L/A/I/LA swizzle. DX and GLES 2.0 don't handle some/all at the moment. This function can convert the texture into a traditional BGRA format.

Protected Attributes
uint32_t	m_imageWidth {0}
uint32_t	m_imageHeight {0}
uint32_t	m_textureWidth {0}
uint32_t	m_textureHeight {0}
uint32_t	m_originalWidth {0}
	original image width before scaling or cropping
uint32_t	m_originalHeight {0}
	original image height before scaling or cropping
uint8_t *	m_pixels {nullptr}
bool	m_loadedToGPU {false}
KD_TEX_FMT	m_textureFormat {KD_TEX_FMT_UNKNOWN}
KD_TEX_SWIZ	m_textureSwizzle {KD_TEX_SWIZ_RGBA}
KD_TEX_COL	m_textureColorspace {KD_TEX_COL_REC709}
KD_TEX_TRANSFER	m_textureTransfer {KD_TEX_TRANSFER_SRGB}
KD_TEX_ALPHA	m_textureAlpha {KD_TEX_ALPHA_STRAIGHT}
XB_FMT	m_format {XB_FMT_UNKNOWN}
int32_t	m_orientation {0}
bool	m_mipmapping {false}
TEXTURE_SCALING	m_scalingMethod {TEXTURE_SCALING::LINEAR}
bool	m_bCacheMemory {false}

Detailed Description

Base texture class, which holds the state of the texture, as well as all conversion functions.

Constructor & Destructor Documentation

CTextureBase()

CTextureBase::CTextureBase ( )

default

~CTextureBase()

CTextureBase::~CTextureBase ( )

default

Member Function Documentation

Allocate()

void CTextureBase::Allocate	(	uint32_t	width,
		uint32_t	height,
		XB_FMT	format
	)

ClampToEdge()

void CTextureBase::ClampToEdge

(

)

ConvertToLegacy()

bool CTextureBase::ConvertToLegacy ( uint32_t  width, uint32_t  height, uint8_t *  src  )

protected

Textures might be in a single/dual channel format with L/A/I/LA swizzle. DX and GLES 2.0 don't handle some/all at the moment. This function can convert the texture into a traditional BGRA format.

GetBlockHeight()

uint32_t CTextureBase::GetBlockHeight ( ) const

protected

GetBlockSize()

uint32_t CTextureBase::GetBlockSize ( ) const

protected

return the size of a compression block (tile) in bytes.

GetBlockWidth()

uint32_t CTextureBase::GetBlockWidth ( ) const

protected

GetCacheMemory()

bool CTextureBase::GetCacheMemory ( ) const

inline

returns true if a shadow copy is kept on the CPU side.

GetHeight()

uint32_t CTextureBase::GetHeight ( ) const

inline

return the total height of "active" area, which might be equal or lower than the texture height due to alignment.

GetOrientation()

int32_t CTextureBase::GetOrientation ( ) const

inline

GetOriginalHeight()

uint32_t CTextureBase::GetOriginalHeight ( ) const

inline

return the original height of the image, before scaling/cropping

GetOriginalWidth()

uint32_t CTextureBase::GetOriginalWidth ( ) const

inline

return the original width of the image, before scaling/cropping

GetPitch() [1/2]

uint32_t CTextureBase::GetPitch ( ) const

inline

return the size of one row in bytes.

GetPitch() [2/2]

uint32_t CTextureBase::GetPitch ( uint32_t  width ) const

protected

GetPixels()

uint8_t * CTextureBase::GetPixels ( ) const

inline

returns a pointer to the staging texture.

GetRows() [1/2]

uint32_t CTextureBase::GetRows ( ) const

inline

return the number of rows (number of blocks in the Y direction).

GetRows() [2/2]

uint32_t CTextureBase::GetRows ( uint32_t  height ) const

protected

GetScalingMethod()

TEXTURE_SCALING CTextureBase::GetScalingMethod ( ) const

inline

returns the scaling method.

GetSwizzle()

KD_TEX_SWIZ CTextureBase::GetSwizzle ( ) const

inline

return the texture swizzle

GetTextureHeight()

uint32_t CTextureBase::GetTextureHeight ( ) const

inline

return the total height of the texture, which might be scaled to fit its displayed size.

GetTextureWidth()

uint32_t CTextureBase::GetTextureWidth ( ) const

inline

return the total width of the texture, which might be scaled to fit its displayed size.

GetWidth()

uint32_t CTextureBase::GetWidth ( ) const

inline

return the total width of "active" area, which might be equal or lower than the texture width due to alignment.

HasAlpha()

bool CTextureBase::HasAlpha ( ) const

inline

IsMipmapped()

bool CTextureBase::IsMipmapped ( ) const

inline

return true if we want to mipmap

PadPow2()

uint32_t CTextureBase::PadPow2 ( uint32_t  x )

static

rounds to power of two. deprecated.

SetAlpha()

void CTextureBase::SetAlpha ( bool  hasAlpha )

inline

SetCacheMemory()

void CTextureBase::SetCacheMemory ( bool  bCacheMemory )

inline

retains a shadow copy of the texture on the CPU side.

SetKDFormat()

void CTextureBase::SetKDFormat ( XB_FMT  xbFMT )

protected

SetMipmapping()

void CTextureBase::SetMipmapping ( )

inline

sets mipmapping. do not use in new code. will be replaced with proper scaling.

SetOrientation()

void CTextureBase::SetOrientation ( int  orientation )

inline

SetScalingMethod()

void CTextureBase::SetScalingMethod ( TEXTURE_SCALING  scalingMethod )

inline

sets the scaling method. scanout systems might support more than NN/linear.

SwapBlueRed()

bool CTextureBase::SwapBlueRed ( uint8_t *  pixels, uint32_t  height, uint32_t  pitch, uint32_t  elements = 4, uint32_t  offset = 0  )

static

swaps the blue/red channel. deprecated in this form.

Member Data Documentation

m_bCacheMemory

bool CTextureBase::m_bCacheMemory {false}

protected

m_format

XB_FMT CTextureBase::m_format {XB_FMT_UNKNOWN}

protected

m_imageHeight

uint32_t CTextureBase::m_imageHeight {0}

protected

m_imageWidth

uint32_t CTextureBase::m_imageWidth {0}

protected

m_loadedToGPU

bool CTextureBase::m_loadedToGPU {false}

protected

m_mipmapping

bool CTextureBase::m_mipmapping {false}

protected

m_orientation

int32_t CTextureBase::m_orientation {0}

protected

m_originalHeight

uint32_t CTextureBase::m_originalHeight {0}

protected

original image height before scaling or cropping

m_originalWidth

uint32_t CTextureBase::m_originalWidth {0}

protected

original image width before scaling or cropping

m_pixels

uint8_t* CTextureBase::m_pixels {nullptr}

protected

m_scalingMethod

TEXTURE_SCALING CTextureBase::m_scalingMethod {TEXTURE_SCALING::LINEAR}

protected

m_textureAlpha

KD_TEX_ALPHA CTextureBase::m_textureAlpha {KD_TEX_ALPHA_STRAIGHT}

protected

m_textureColorspace

KD_TEX_COL CTextureBase::m_textureColorspace {KD_TEX_COL_REC709}

protected

m_textureFormat

KD_TEX_FMT CTextureBase::m_textureFormat {KD_TEX_FMT_UNKNOWN}

protected

m_textureHeight

uint32_t CTextureBase::m_textureHeight {0}

protected

m_textureSwizzle

KD_TEX_SWIZ CTextureBase::m_textureSwizzle {KD_TEX_SWIZ_RGBA}

protected

m_textureTransfer

KD_TEX_TRANSFER CTextureBase::m_textureTransfer {KD_TEX_TRANSFER_SRGB}

protected

m_textureWidth

uint32_t CTextureBase::m_textureWidth {0}

protected

---

The documentation for this class was generated from the following files:

• TextureBase.h
• TextureBase.cpp
